1000mm Laser Welded Diamond Saw Blades for Concrete Wall Saw
1. Description of 1000mm Laser Welded Diamond Saw Blades for Concrete Wall Saw
1000mm diamond saw blade is 100% laser welding designed for solving the difficulty of heavily reinforced concrete cuttings. for example, demolition constrcution, including the partial modification and delimotion buildings and walls, opening window holes, doorways, demolition of bridges etc.
"Single U" type segment ensure good cooling in fast cutting.
2. Feature of 1000mm Laser Welded Diamond Saw Blades for Concrete Wall Saw
Δ Fit to hydraulic or electric powered wall saw.
Δ Any flush-cut bolt holes size available.
Δ Dry or wet cutting.
Δ Mainly market:Asia, America, Africa, Europe, Australia.
3. Specification of 1000mm Laser Welded Diamond Saw Blades for Concrete Wall Saw
Diameter:1000mm
Segment thickness:4.8/5mm
Segment height:10/12mm
Inner hole:60mm
| OD (mm) | Teeth specification | Hole(mm) |
| Length (mm) | Thickness (mm) | Height (mm) | Number |
| 1000 | 40 | 4.8/5 | 10 | 58 | 60 |
| 1000 | 40 | 4.8/5 | 12 | 58 | 60 |
Other size we could do
| Inch | Diameter
(mm) | Segment length
(mm) | Segment thickness
(mm) | Segment height
(mm) | Segment number
(nos) |
| 24" | 600 | 40 | 4.8/5 | 10/12 | 36 |
| 28" | 700 | 40 | 4.8/5 | 10/12 | 40 |
| 32" | 800 | 40 | 4.8/5 | 10/12 | 46 |
| 36" | 900 | 40 | 4.8/5 | 10/12 | 52 |
| 48" | 1200 | 40 | 4.8/5 | 10/12 | 68 |
| 56" | 1400 | 40 | 4.8/5 | 10/12 | 86 |
| 60" | 1500 | 40 | 4.8/5 | 10/12 | 90 |
| 64" | 1600 | 40 | 4.8/5 | 10/12 | 92 |

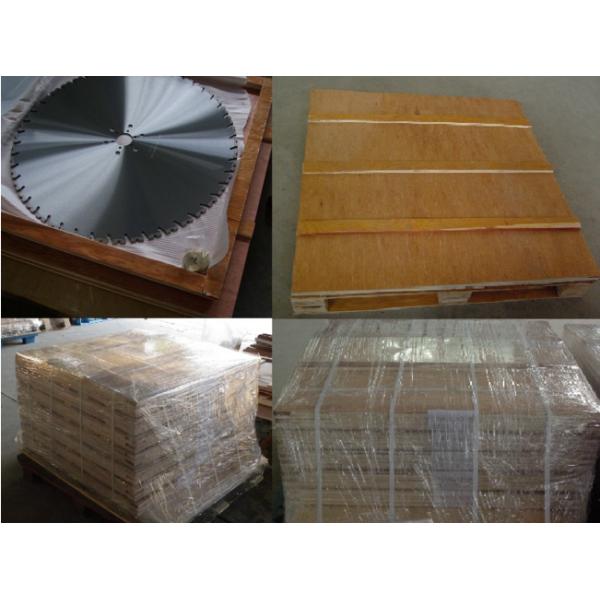

4. Packing and Shipping
5pcs 1000mm wall saw blades are packed in one plywood, gross weight per plywood is limited within 100kg.
Shipping date: If there is steel discs in our stock, normally shipment within 7-10days. If not, around 25-30days.
Delivery way: By air, by sea, by land, by courier, etc.
5. Payment term
TT, Irrevocable L/C at sight,PayPal, West Union, Credit Card, etc.
6. Our Technology
Contact us today, you will get more than what you see
